rs-905dbx
rs-tr474C
rs-tr474CATC

RightMark Audio Analyzer test


Testing chain: External loopback (line-out - line-in)
Sampling mode: 24-bit, 192 kHz




Summary

Testrs-905dbxrs-tr474Crs-tr474CATC
Frequency response (from 40 Hz to 15 kHz), dB: +0.45, -2.05+1.59, -3.66+2.57, -4.86
Noise level, dB (A): -79.7-74.5-74.4
Dynamic range, dB (A): 79.873.873.3
THD, %: 0.2660.9440.899
IMD + Noise, %: 9.2823.9188.194
Stereo crosstalk, dB: -55.0-69.1-70.0

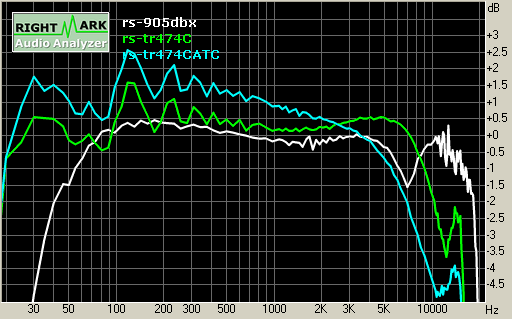

Frequency response

Spectrum graph

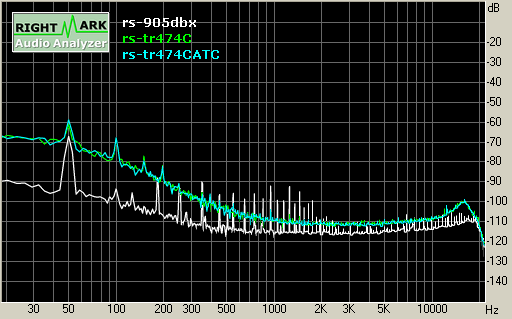

Noise level

Spectrum graph

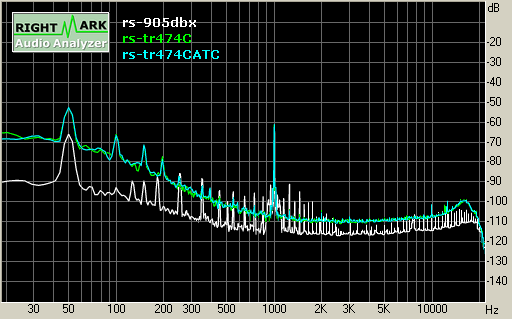

Dynamic range

Spectrum graph

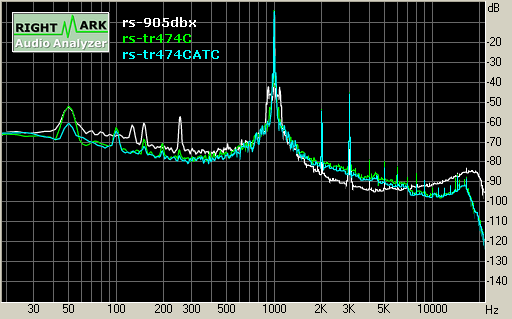

THD + Noise (at -3 dB FS)

Spectrum graph

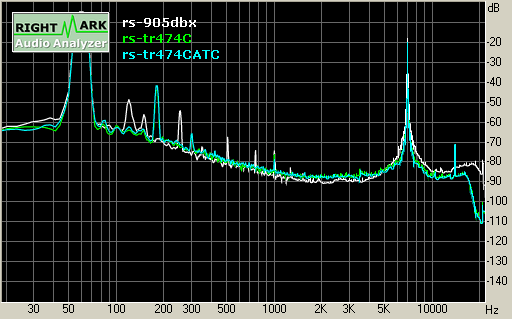

Intermodulation distortion

Spectrum graph

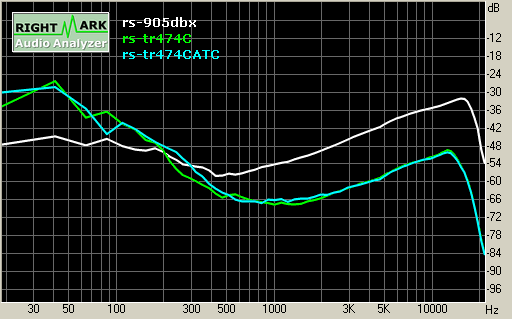

Stereo crosstalk

Spectrum graph



This report was generated by RightMark Audio Analyzer 5.5
